COMPONENTS

Walnut Custom Components is a Building Component Design and Fabricator

We specialize in Roof Systems, Wall Systems, and Floor Systems.
That combination equals complete component solutons.
Roof Trusses
Photos
Roof Trusses can be manufactured in lengths up to 80’ for greater span capabilities over conventional 2x rafter framing.
Roof Trusses increase speed of erection time versus jobsite cutting and framing of conventional 2x framing reducing jobsite labor costs and material waste.

Roof Trusses are an engineered product with Sealed Truss Profiles provided by a state licensed Professional Engineer.

  1. NAME OF PRODUCT
  2. NAME OF PRODUCT
  3. NAME OF PRODUCT
  4. NAME OF PRODUCT
  5. NAME OF PRODUCT
  6. NAME OF PRODUCT
  7. NAME OF PRODUCT
Wall Panels
Photos

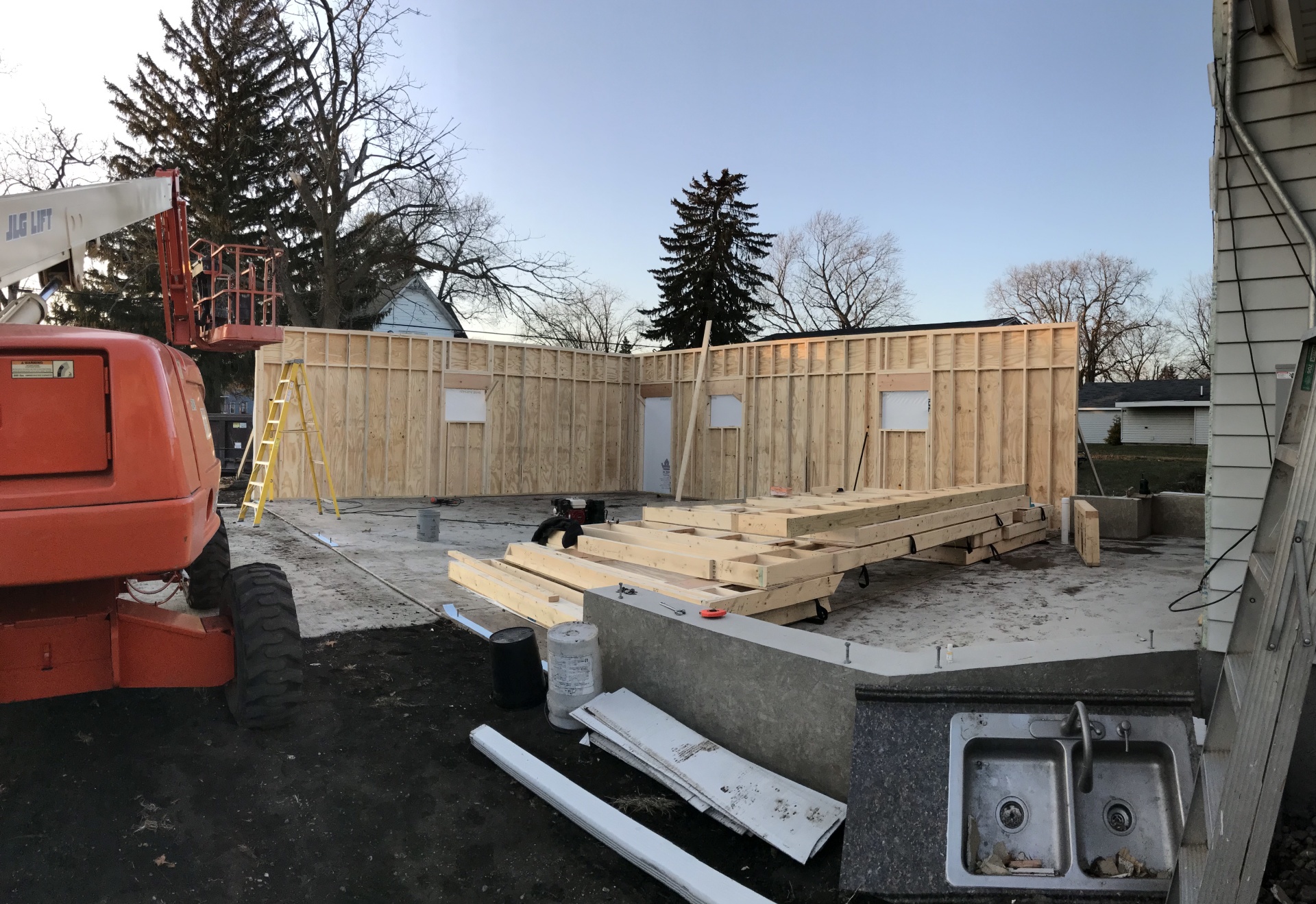

Prefabricated Wall Panels are produced in a factory climate controlled atmosphere. This allows for greater control of product quality used during production and adds the ability to find and remedy any inconsistency or errors in initial designs before product arrives on Jobsite reducing jobsite downtime and delays.

Prefabricated Wall Panels greatly control and reduce Jobsite material  waste associated with conventional stick framing that in turn saves the builder money.

Prefabricated Wall Panels Increase the speed of Job Site erection, reducing the amount of time product sits exposed to the weather during the construction process and allows for other trades to begin their work sooner on the project.

Using wall panels has many benefits including being engineered at the manufacturers which helps maintain consistency.

​The wall panel manufacturer can apply building wrap and sheathing, saving time at the job site.  Diagrams for wall panel placement simplifies installation by identifying panels and their locations.  Patterns used for nailing studs, plates and sheathing is more accurate and consistent if done at the manufacturer rather than out in the field.  The quality of materials used in these panels is easier to control which makes for better consistency between panels.
  1. NAME OF PRODUCT
  2. NAME OF PRODUCT
  3. NAME OF PRODUCT
  4. NAME OF PRODUCT
  5. Title 6
Floor Trusses
Photos
Floor systems can be trussed, conventionally framed, or built with engineered wood products such as I-Joists.  Both trusses and engineered wood products are engineered, and have wider nailing surfaces for the floor decking.  Trusses are built with open chases for ductwork and have natural open spaces for plumbing and electrical wiring.

Floor trusses can be manufactured with many different possible end conditions to accommodate different installation needs; around raised walls, picketed beams, headers around stairways, etc.

OPEN CONFIGURATION (OPEN WEB) FLOOR TRUSSES
Open Web Floor Trusses eliminate the need for down-framing to hide mechanicals and  can span further and also be spaced further apart than conventional 2x framing, providing a value engineered design (less money at the end of the day).

Since its an engineered product, WCC can provide sealed drawings.

  1. NAME OF PRODUCT
  2. NAME OF PRODUCT
  3. NAME OF PRODUCT
